2004 Ford Fiesta Main Fuse Box Diagram

2004 Ford Fiesta Main Fuse Box Diagram 300x208 2004 Ford Fiesta Main Fuse Box Diagram

2004 Ford Fiesta Main Fuse Box Diagram

2004 Ford Fiesta Main Fuse Box Map 300x272 2004 Ford Fiesta Main Fuse Box Diagram

2004 Ford Fiesta Main Fuse Box Map

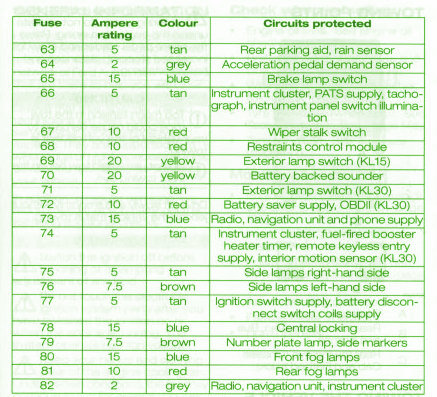

Fuse Panel Layout Diagram Parts: Number Plate Lamp, Side Markers, Acceleration Pedal Demand Sensor, Brake Lamp Switch, Instrument Cluster, PATS Supply, Tachograph, Phone Supply, Instrument Cluster, Remote Keyless Entry Suply, Restraints Control Module, Front Fog Lamps, Rear Fog lamps, Navigation Unit, Instrument Cluster. Rear Parking Aid, Rain Sensor, Wiper Stalk Switch, Interior Motion Sensor, Side Lamp Right, Side Lamp Left, Ignition Switch Supply, Central Locking Exterior Lamp Switch, Battery Saver Supply, Radio, Instrument Panel Switch Illumination.
