1994 Isuzu Pickup Rally Fuse Box Diagram

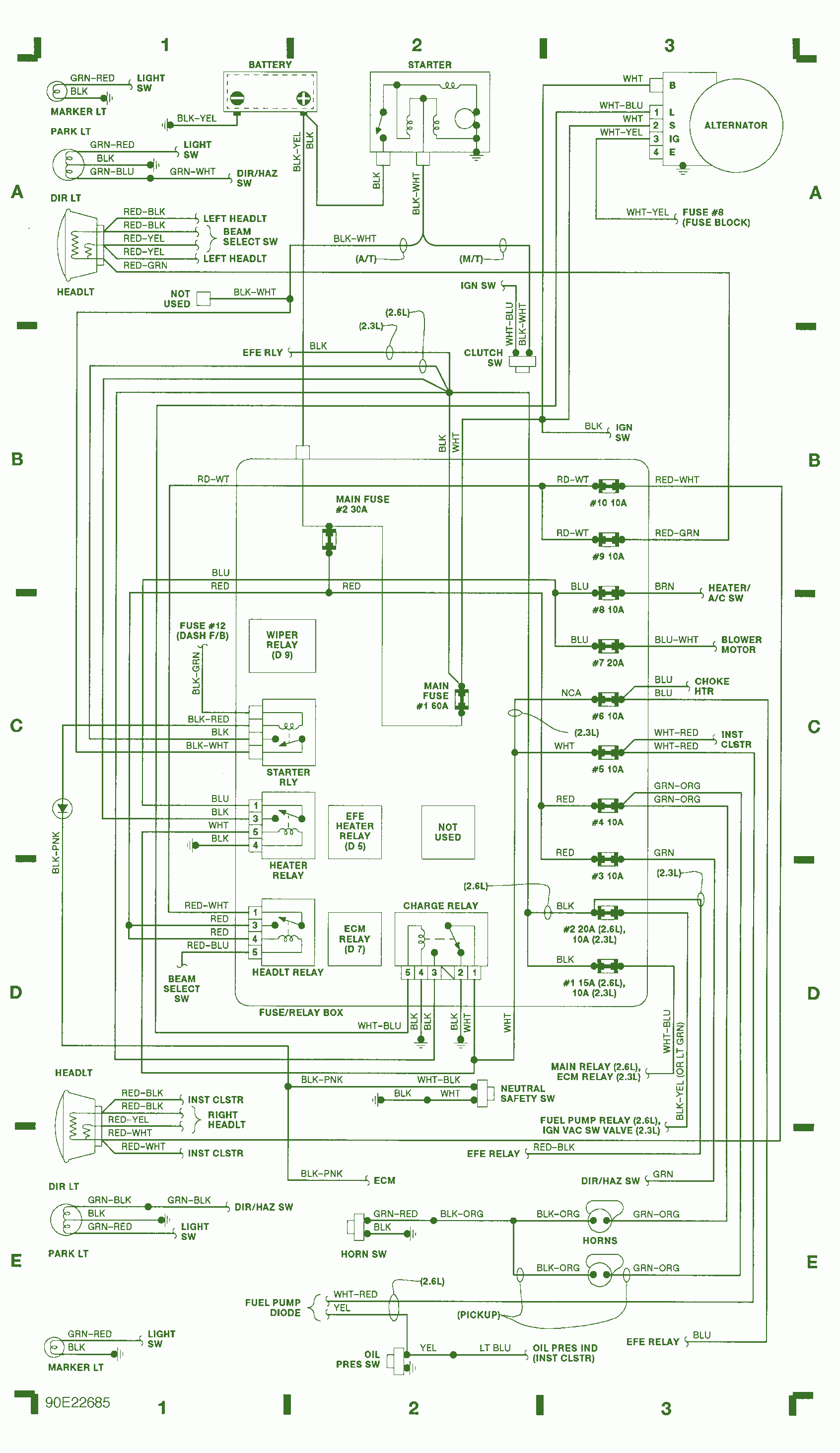

1994 Isuzu Pickup Rally Fuse Box Diagram 173x300 1994 Isuzu Pickup Rally Fuse Box Diagram

1994 Isuzu Pickup Rally Fuse Box Diagram

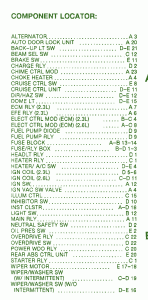

1994 Isuzu Pickup Rally Fuse Box Map 148x300 1994 Isuzu Pickup Rally Fuse Box Diagram

1994 Isuzu Pickup Rally Fuse Box Map

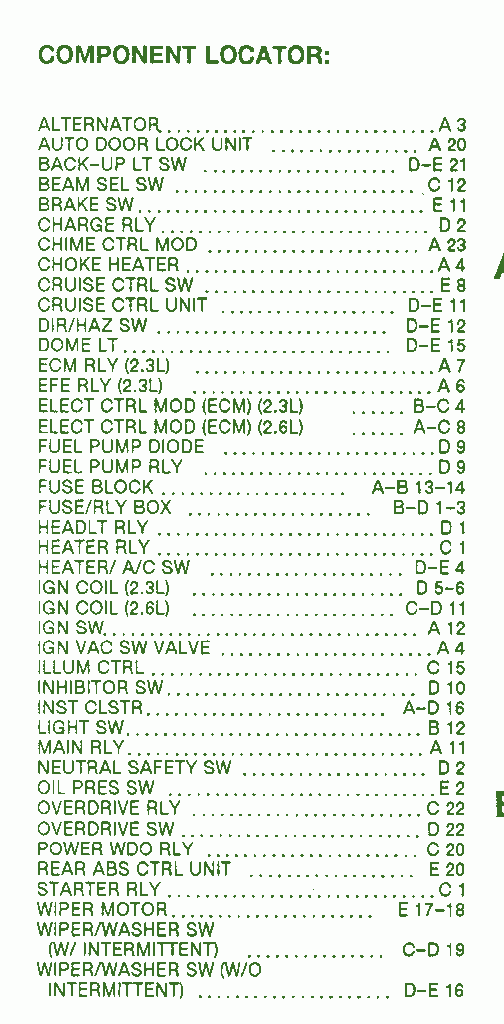

Fuse Panel Layout Diagram Parts: instrument cluster, light switch, main relay, neutral safety switch, oil pres switch, overdrive relay, power window relay, ABS control unit, starter relay, wiper motor, washer, electronic control module, fuel pump diode, fuel pump relay, headlamp relay, alternator, auto door lock, back up switch, charge relay, chime control module, cruise control switch, hazzard switch, dome light, ECM relay, heater relay, ignition coil, ignition switch, illumination control.
