2002 Mazda Xedos Interior Fuse Box Diagram

 2002 Mazda Xedos Interior Fuse Box Diagram 2002 Mazda Xedos Interior Fuse Box Diagram

2002 Mazda Xedos Interior Fuse Box Diagram

2002 Mazda Xedos Interior Fuse Box ap 291x300 2002 Mazda Xedos Interior Fuse Box Diagram

2002 Mazda Xedos Interior Fuse Box Map

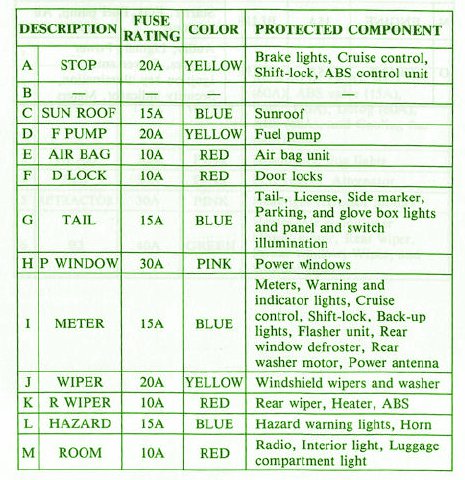

Fuse Panel Layout Diagram Parts: power window, indicator light, cruise control, shift lock, back up light, flasher unit, rear washer motor, power antenna, heater, hazard warning light, horn, radio, interior light, luggage compartment light, door lock, license, side marker, parking light, glove box light, brake light, cruise control, ABS control switch, sunroof, fuel pump, air bag unit,
