1986 Porsche 924 Mini Fuse Box Diagram

By admin in Porsche

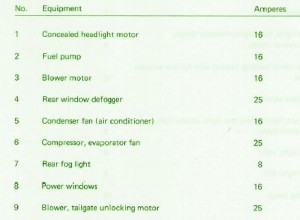

1986 Porsche 924 Mini Fuse Box Diagram

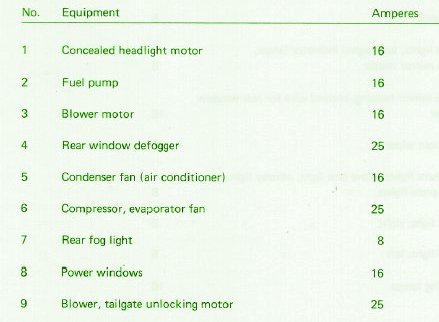

1986 Porsche 924 Mini Fuse Box Map

Fuse Panel Layout Diagram Parts: fog light, power window, blower, tailgate unlocking motor, condenser fan, compressor, concealed headlight motor, fuel pump, blower motor, rear window defogger, evaporator fan.
