2005 Acura RL Driver’s Under Dash Fuse Box Diagram

2005 Acura RL Driver’s Under Dash Fuse Box Diagram

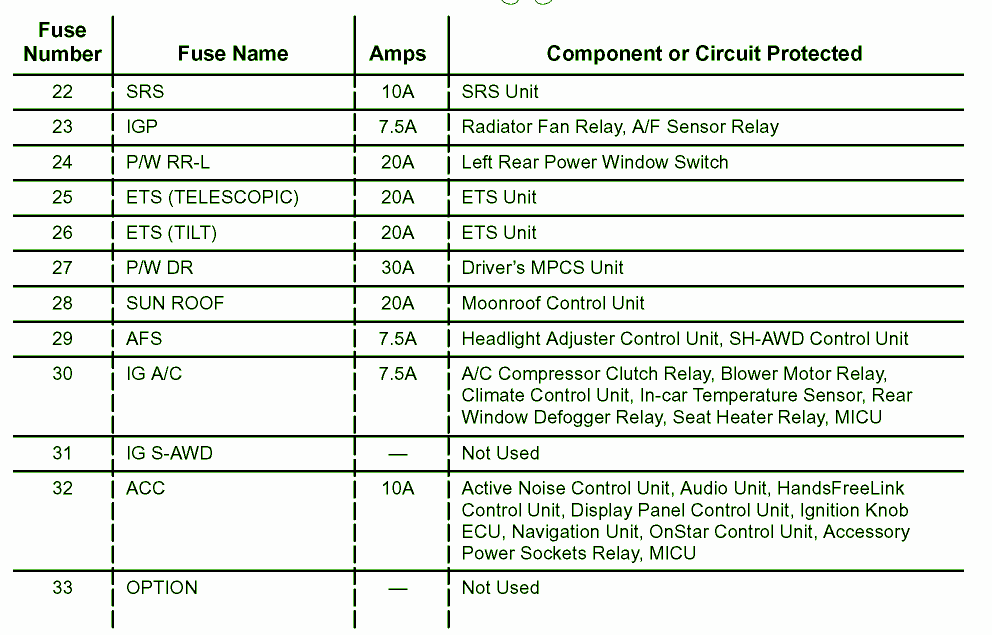

2005 Acura RL Driver’s Under Dash Fuse Box Map

Fuse Panel Layout Diagram Parts: ETS unit, seat heater relay, SRS unit, driver MPCS unit, moonroof control unit, climate control unit, active noise control unit, A/C compressor clutch relay, blower motor relay, radiator fan relay, A/F sensor relay, power window switch, audio unit, display panel control unit, ignition knob ECU, headlight adjuster control unit, navigation unit, on star control unit.
