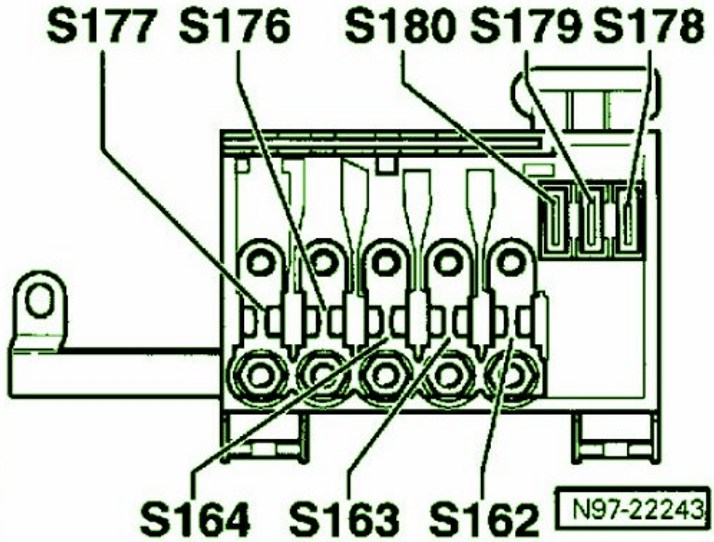

2005 Volkswagen Touareg V8 Battery Fuse Box Diagram

By admin in Volkswagen

2005 Volkswagen Touareg V8 Battery Fuse Box Diagram

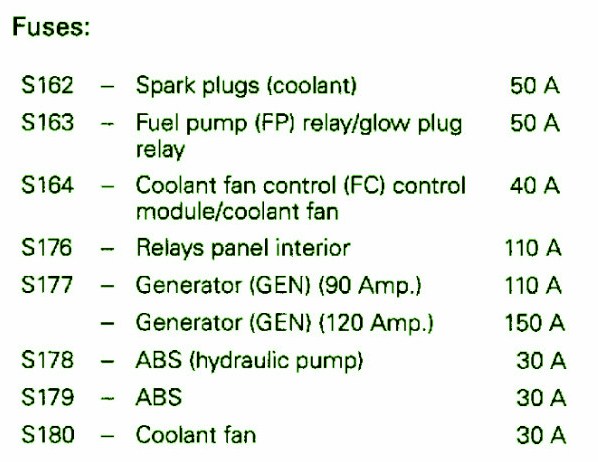

2005 Volkswagen Touareg V8 Battery Fuse Box Map

Fuse Panel Layout Diagram Parts: relays panel interior, generator, coolant fan control, spark plugs, fuel pump, ABS system, coolant fan relay,
